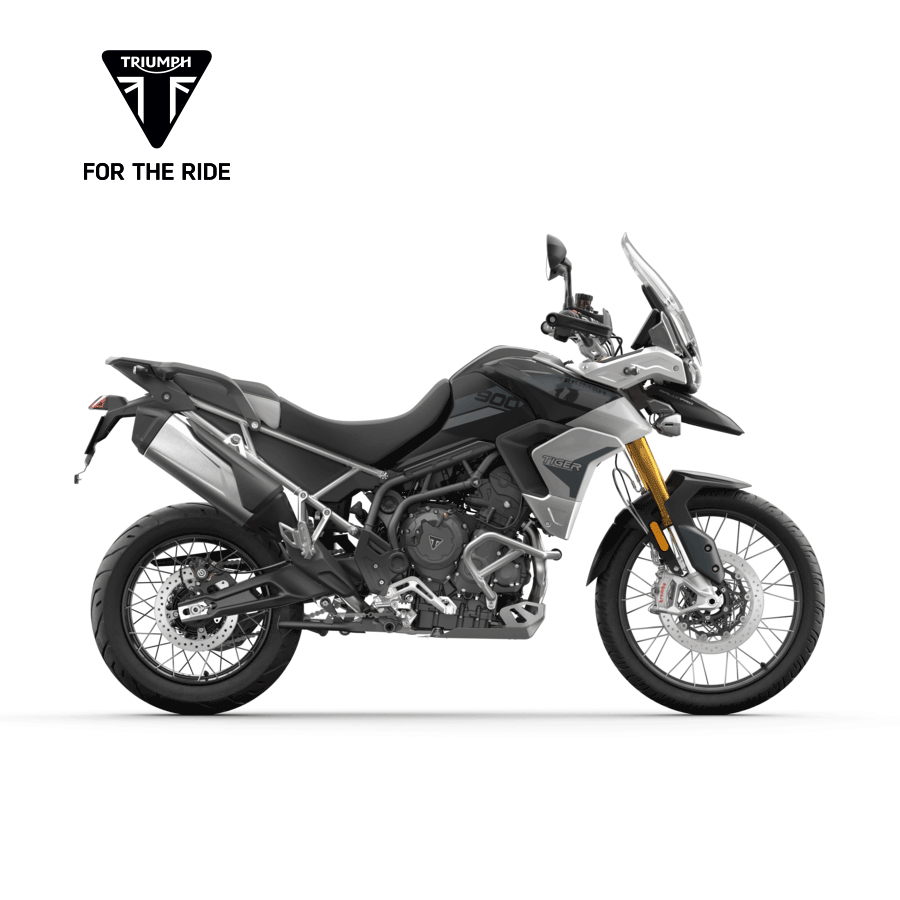

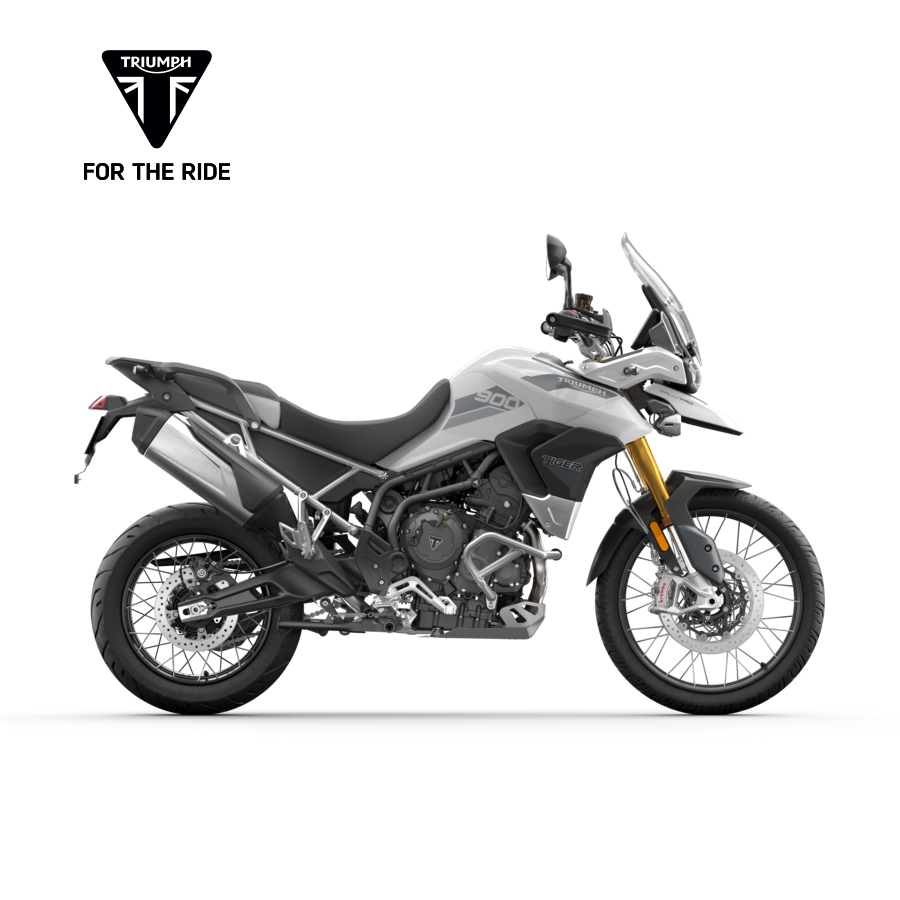

This incredible bike is packed with category-leading specification for maximum off-road and on-road adventure capability.
The Tiger’s new 900cc triple delivers a distinctive low-down punch and a raspy deep roar, with thrilling mid-range thrust and top-end performance.
Width handlebars: | 935 mm | Clutch: | Wet, multi-plate |
Height without mirror: | 1,452~1,502 mm | Gearbox: | 6-speed |

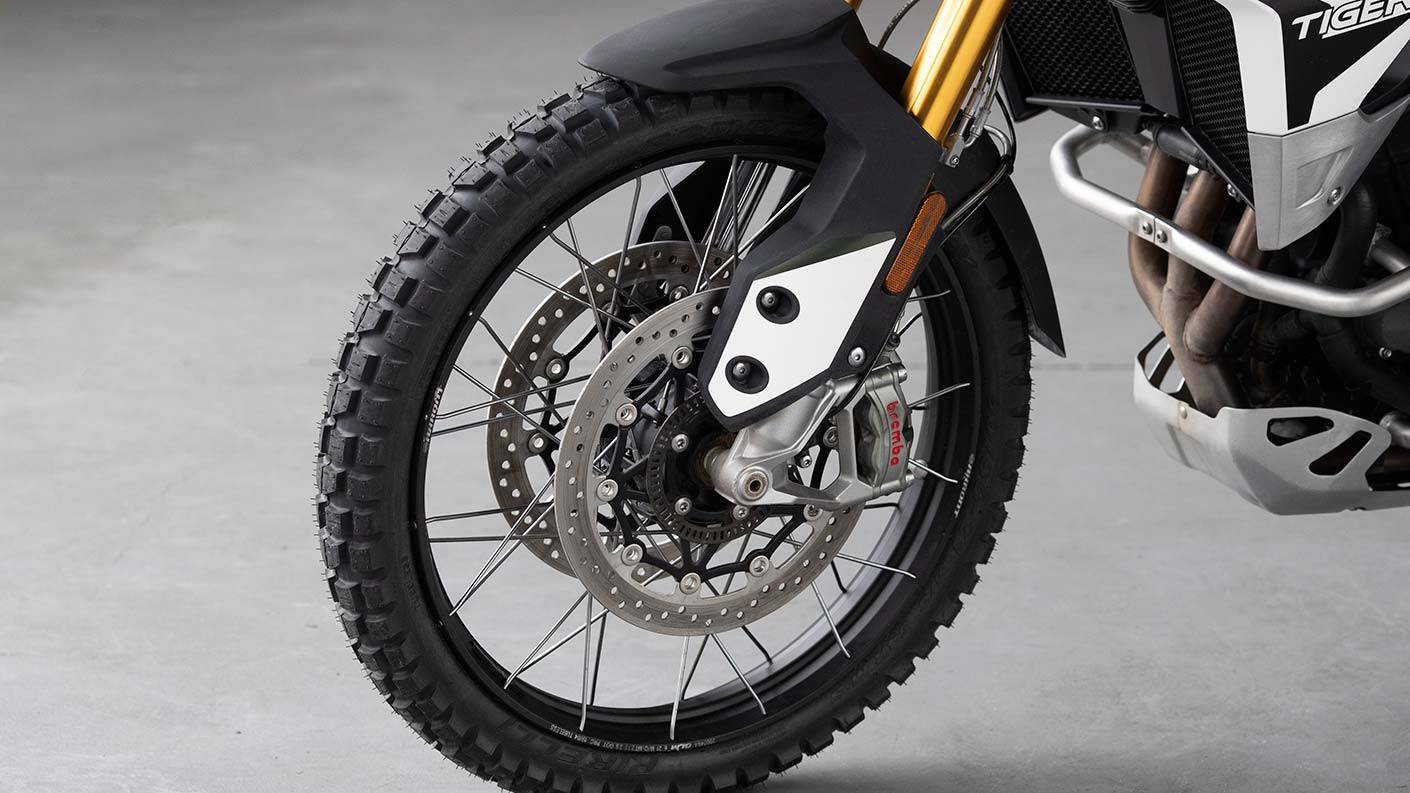

Seat height: | 850~870 mm | Front wheel: | Spoke tubeless, 21 x 2.15 in |
Wheelbase: | 1,551 mm | Rear wheel: | Spoke tubeless, 17 x 4.25 in |
Frame: | Tubular steel frame, bolt-on subframe | Front suspension: | Showa 45 mm upside down forks, manual preload, rebound damping and compression damping adjustment, 9.44 in (240 mm) travel. |
Seat height: | 785 mm | Rear suspension: | Twin 320 mm floating discs, Brembo Stylema 4-piston Monobloc calipers. Radial front master cylinder, Multi-mode ABS, Optimized Cornering ABS. |
Dry Weight: | 201 kg | Rake / Trail: | 24.4° / 145.8 mm |

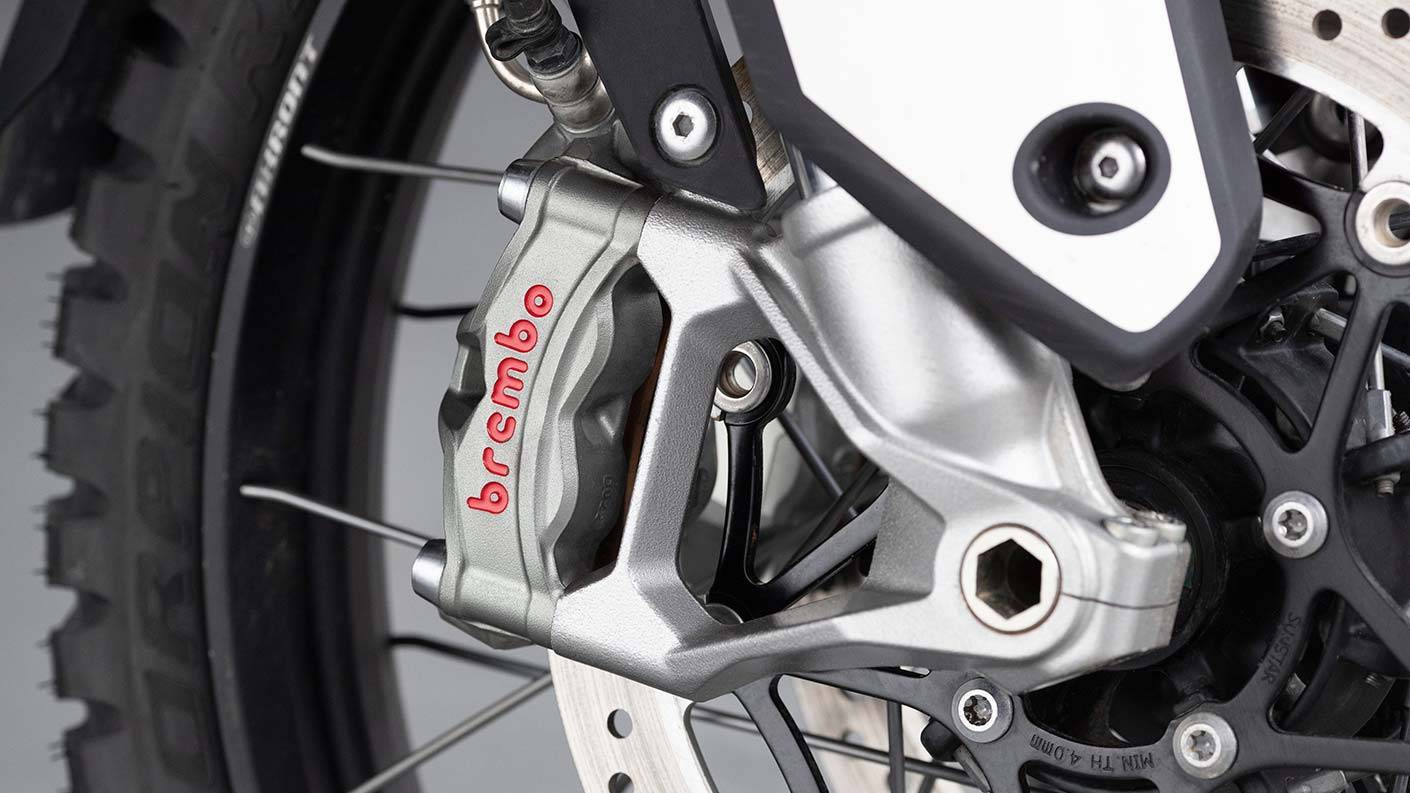

Engine type: | Liquid-cooled, 12 valve, DOHC, in-line 3-cylinder | Front brake: |
Twin 320mm floating discs, Brembo Stylema 4 piston Monobloc calipers. Radial front master cylinder, Optimised Cornering ABS |

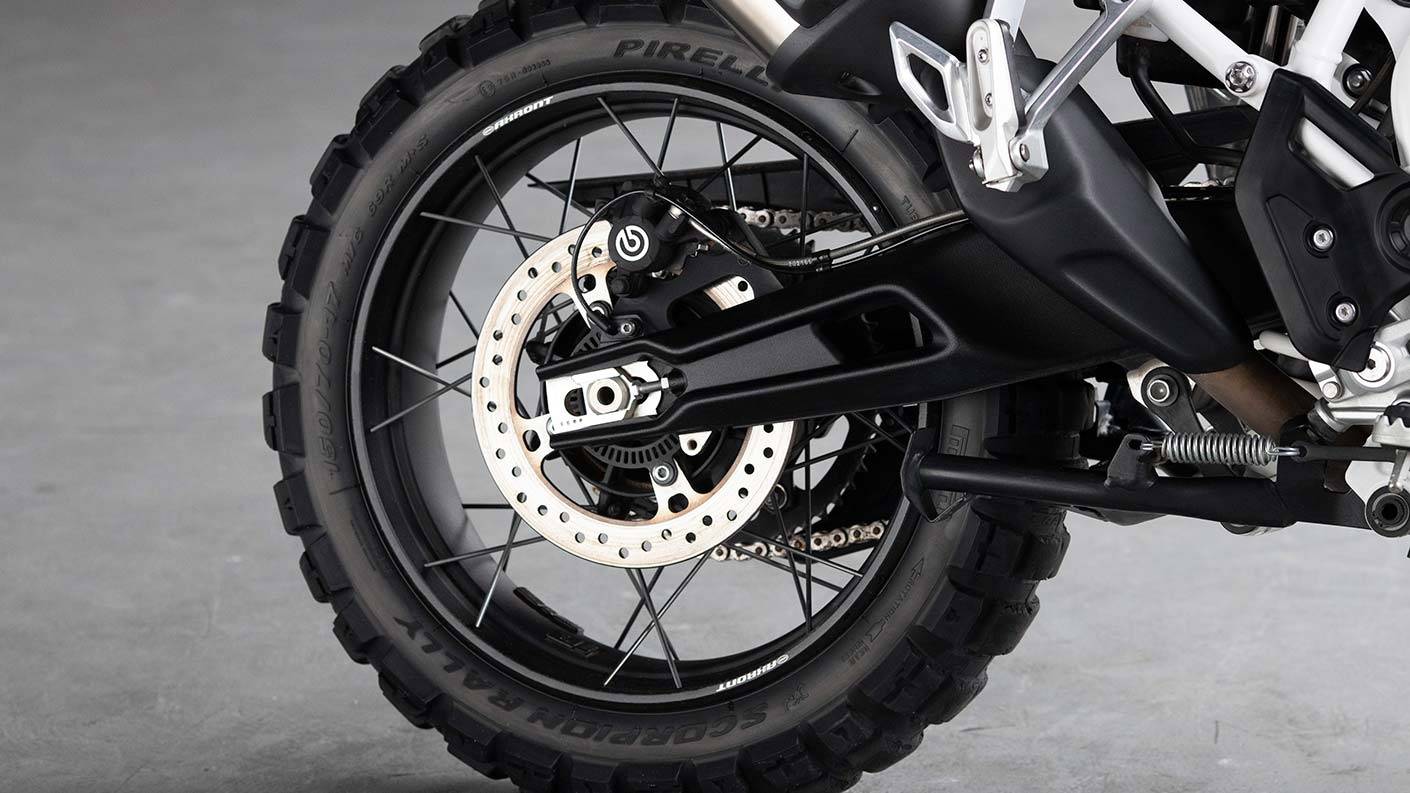

Capacity: | 888 cc | Rear brake: | Single 255mm disc. Brembo single piston sliding caliper. Optimised cornering ABS. |
Bore × Stroke: | 78 mm x 61.9 mm | Front tire size: | 90/90-19 |
Compression ratio: | 11.27 : 1 | Rear tire size | 150/70R17 |
System: | Multipoint sequential electronic fuel injection | Instrument Display and Functions: |

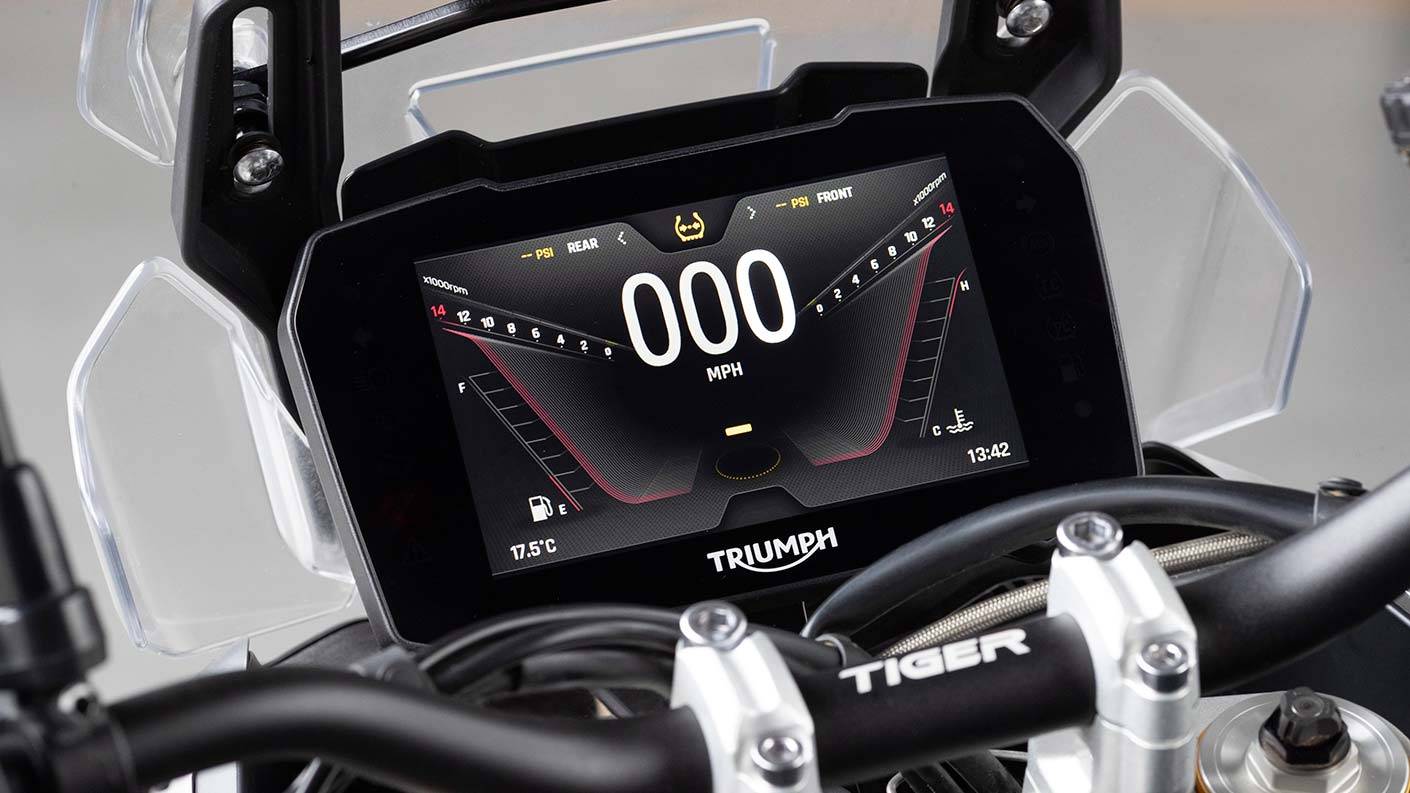

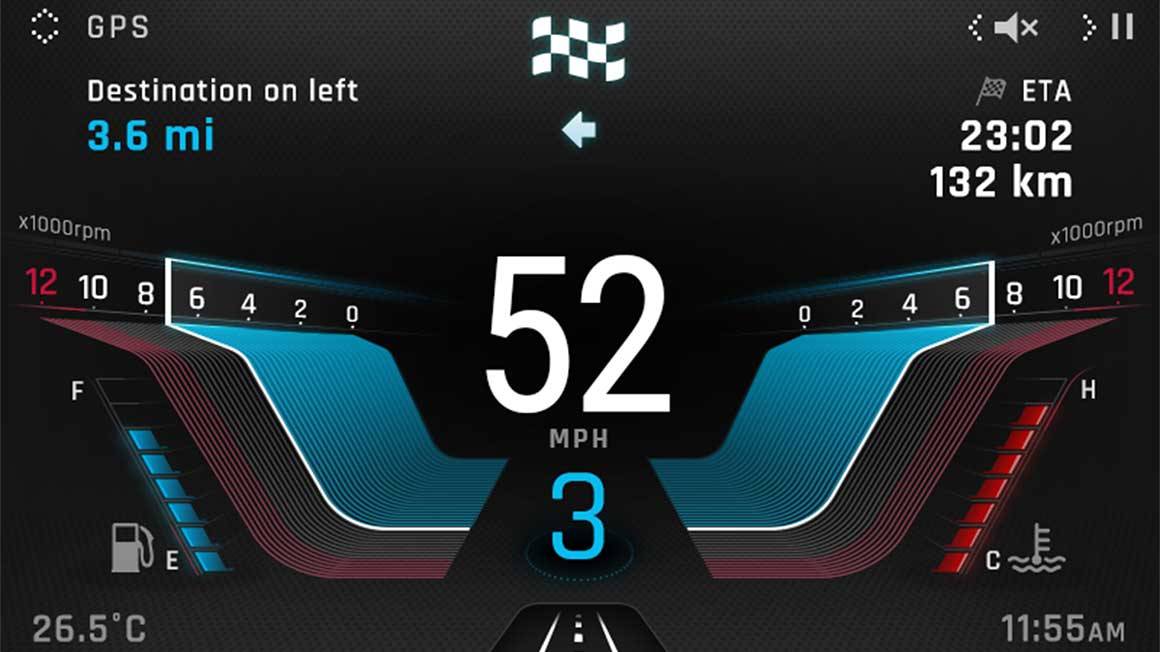

7" TFT multifunctional instrument pack with digital speedometer, trip computer, digital tachometer, gear position indicator, fuel gauge, service indicator, ambient temperature, clock and Riding Modes. |
Exhaust: | Stainless steel 3 into 1 header system, side mounted stainless steel silencer | Fuel tank capacity: | 20L |
Final Drive: | O-ring Chain |
