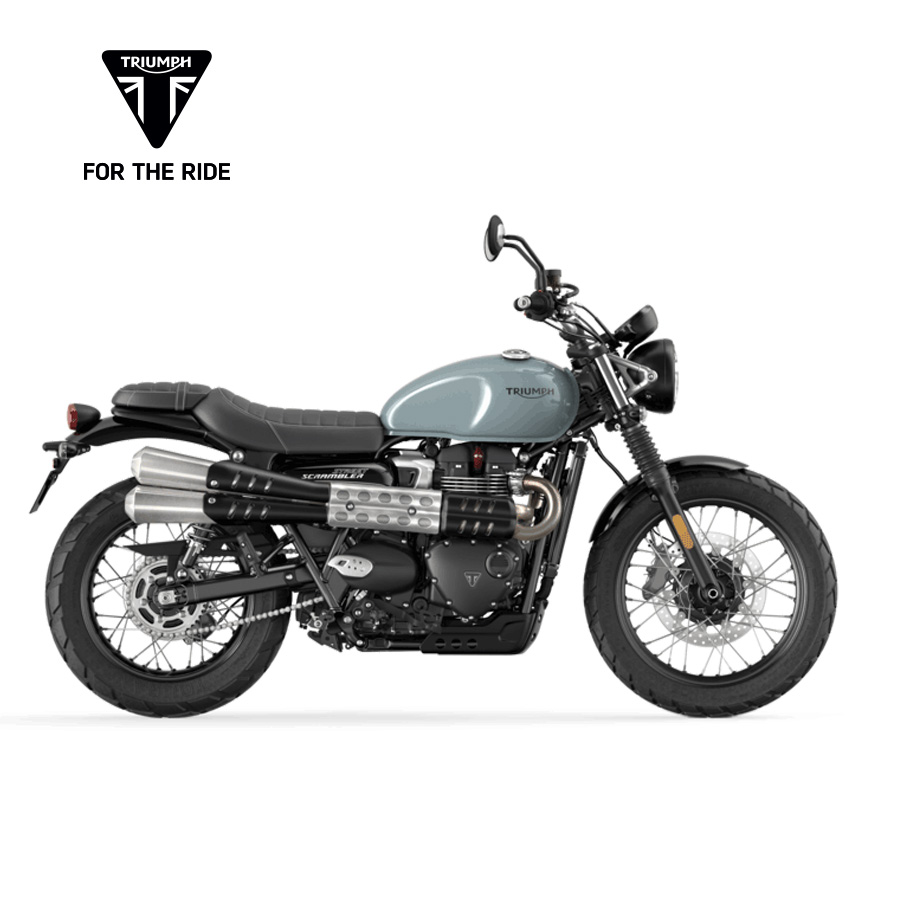

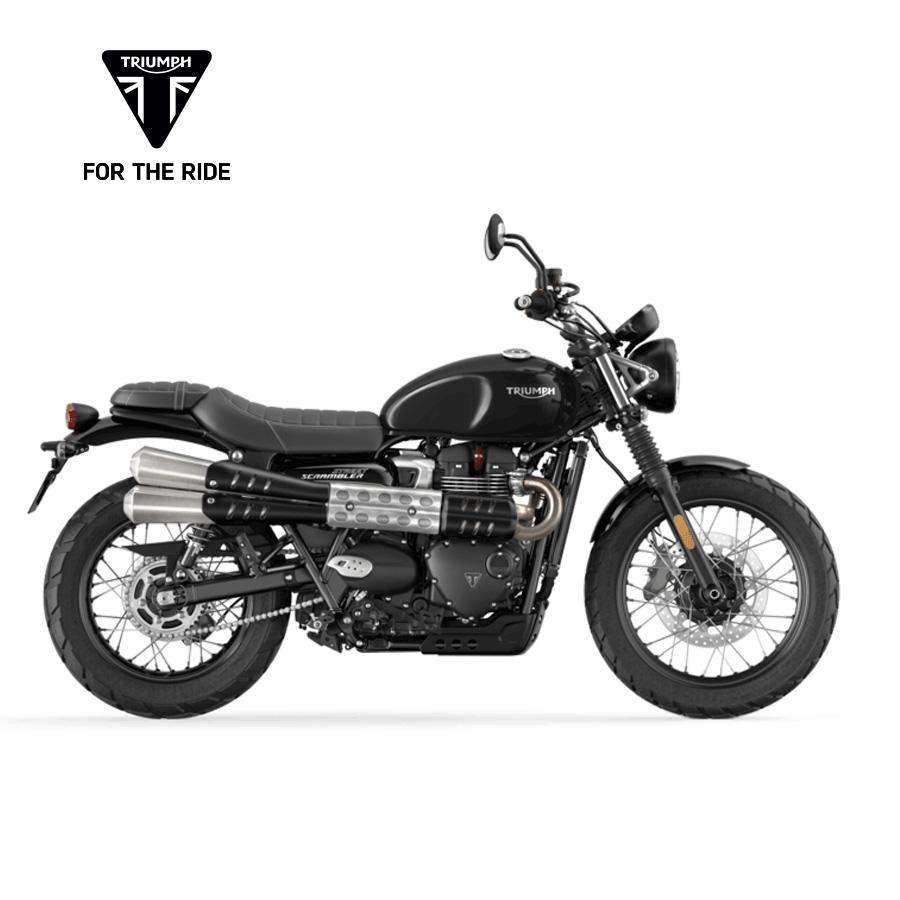

Rugged off-road attitude, cool versatility and iconic style, with the capability and performance for all-road fun.
The New Street Scrambler Sandstorm Limited Edition - born from the timeless bloodline of Triumph’s desert racers.

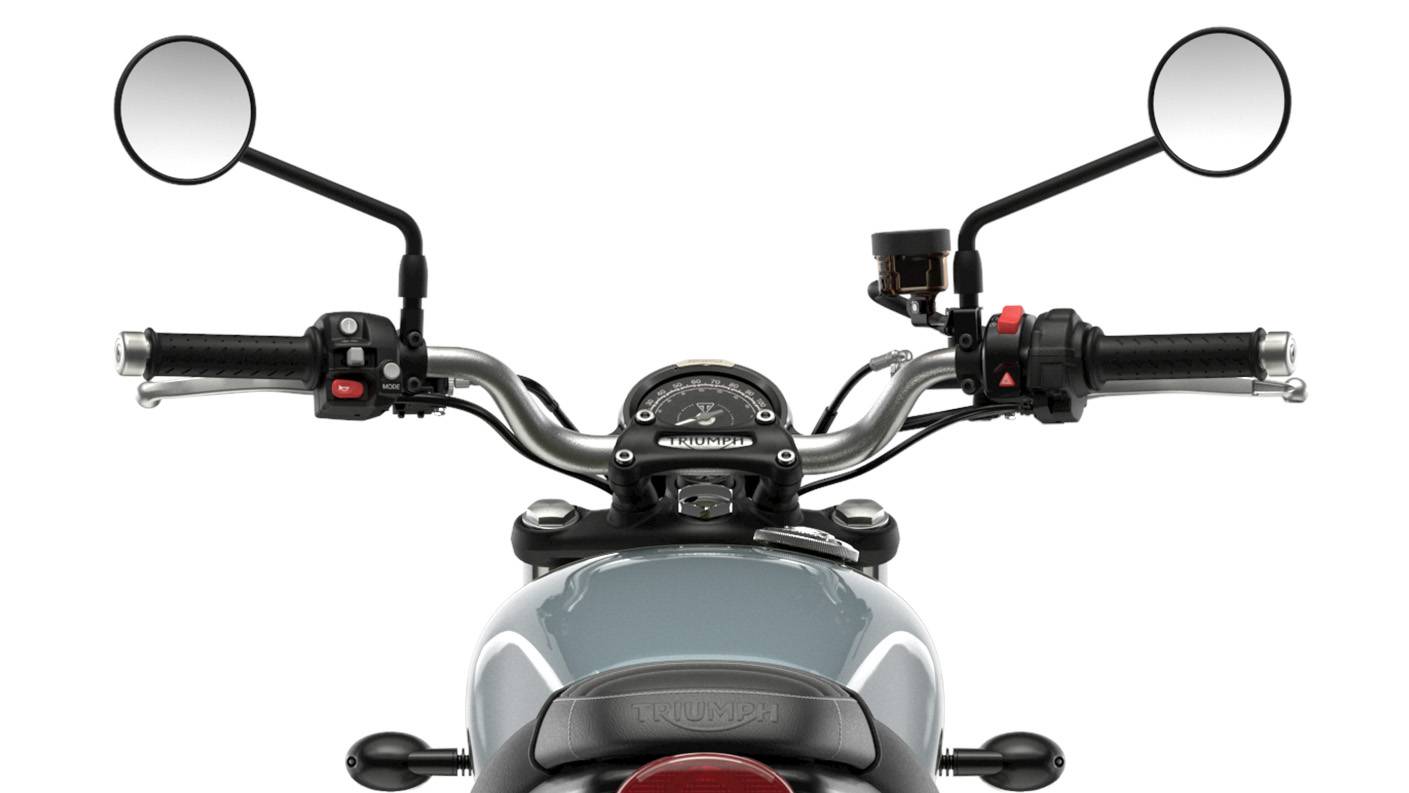

Width handlebars: | 900 mm | Clutch: | Wet, multi-plate assist clutch |
Height without mirror: | 1,180 mm | Gearbox: | 5-speed |

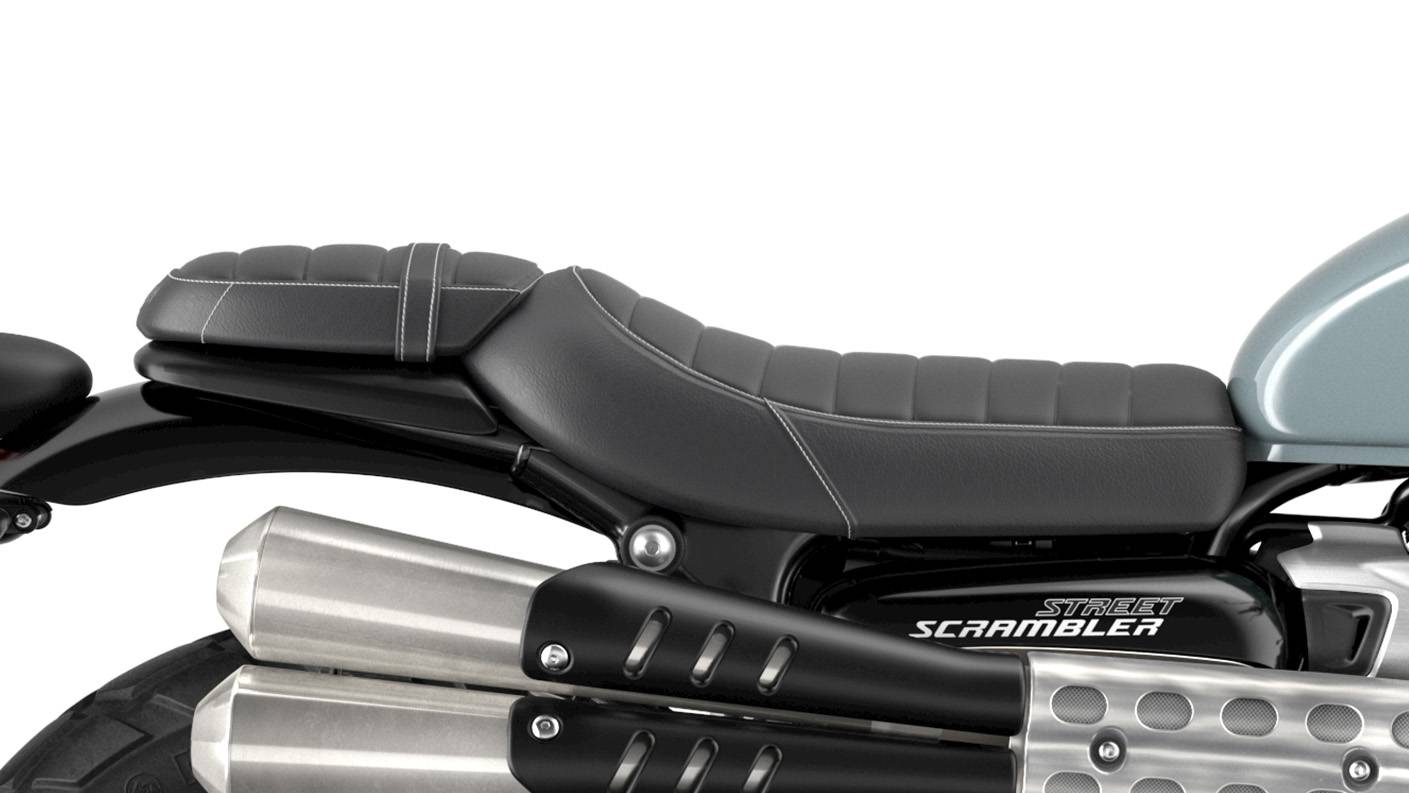

Seat height: | 790 mm | Front wheel: | Spoked steel rims, 19’’ x 2.5’’ |
Wheelbase: | 1,445 mm | Rear wheel: | Spoked steel rims, 17’’ x 4.25’’ |
Frame: | Tubular steel, with twin cradles | Front suspension: | Ø 41mm forks with cartridge damping. 120mm travel |

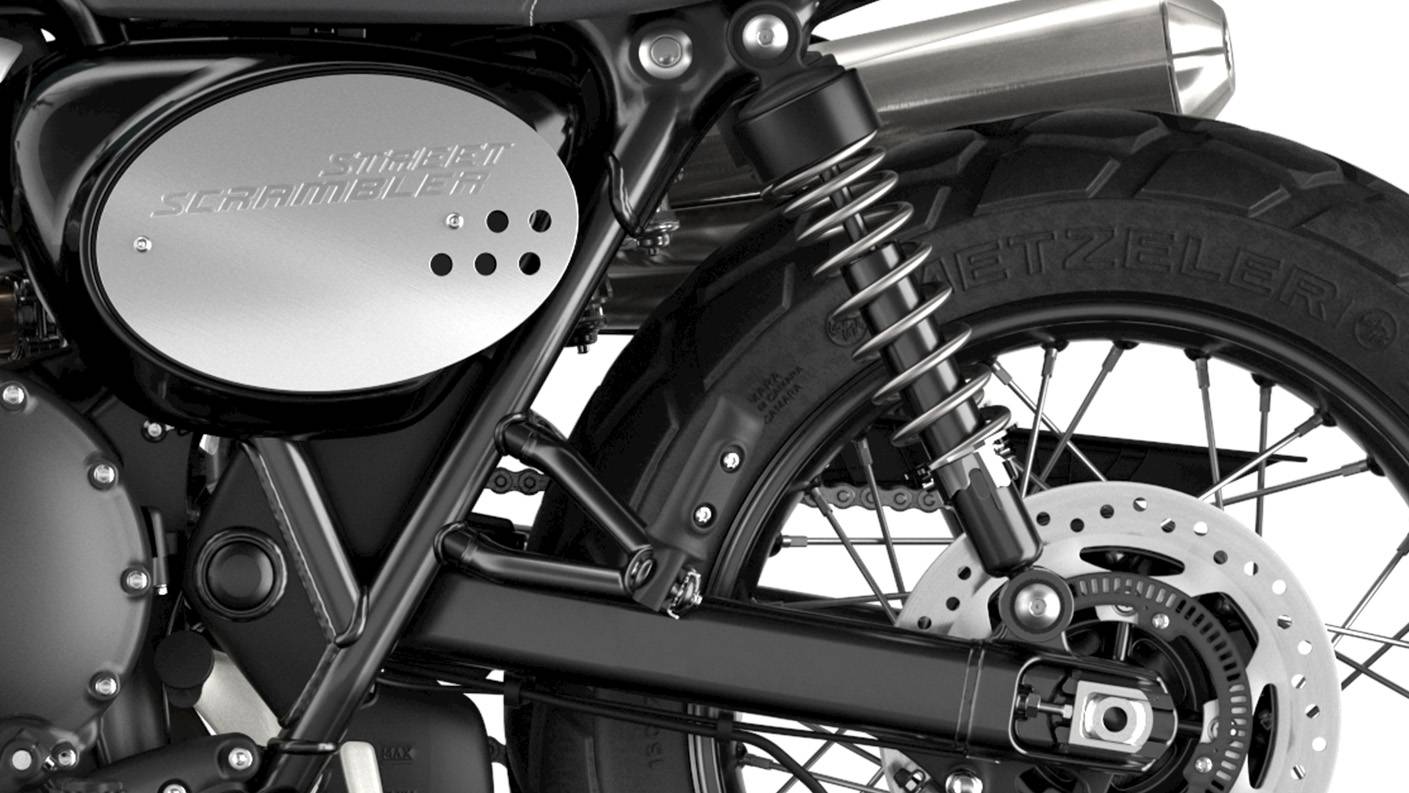

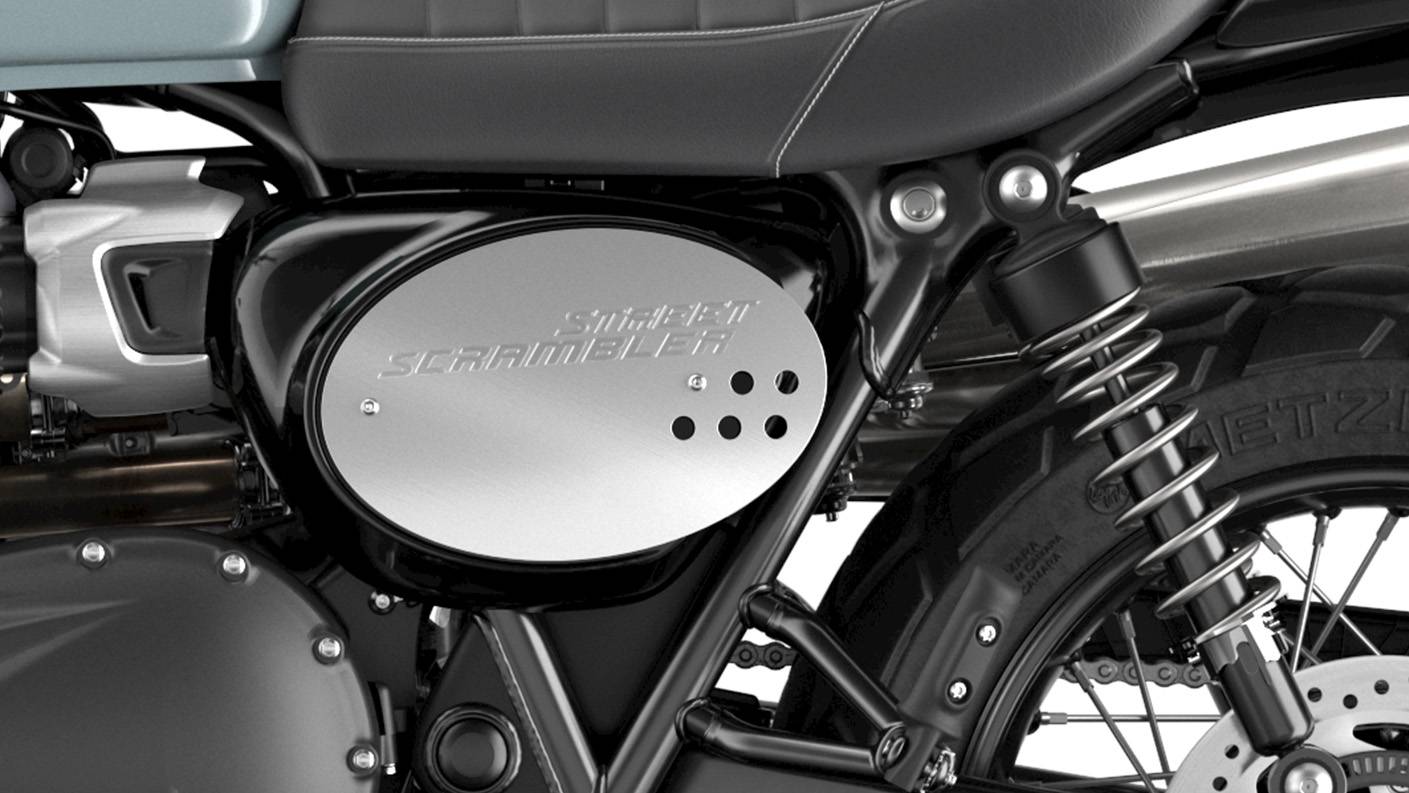

Wheelbase: | 1,599 mm | Rear suspension: | Twin shocks with adjustable preload. 120mm rear wheel travel |
Dry Weight: | 223 kg | Rake / Trail: | 25.6° / 109 mm |

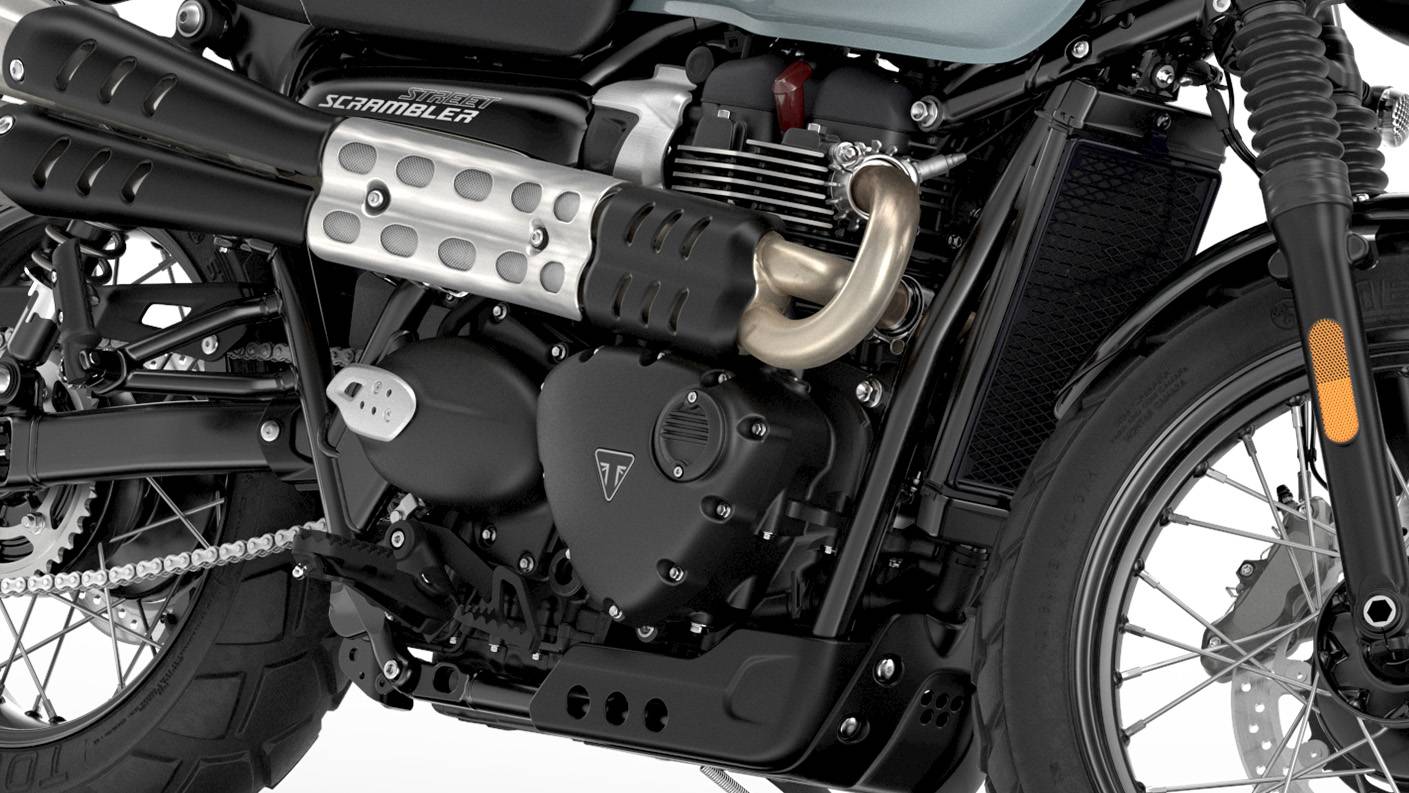

Engine type: | Liquid cooled, 8 valve, SOHC, 270° crank angle parallel twin | Front brake: |
Single Ø310mm floating disc, Brembo 4-piston fixed axial caliper, ABS |
Capacity: | 1,200 cc | Rear brake: | Single Ø255mm disc, Nissin 2-piston floating caliper, ABS |
Bore × Stroke: | 84.6 mm x 80 mm | Front tire size: | 100/90-19 Metzeler Tourance |
Compression ratio: | 11.0 : 1 | Rear tire size: | 150/70 R17 Metzeler Tourance |
System: | Multipoint sequential electronic fuel injection | Ignition system: |
ignition (Transistorized) |

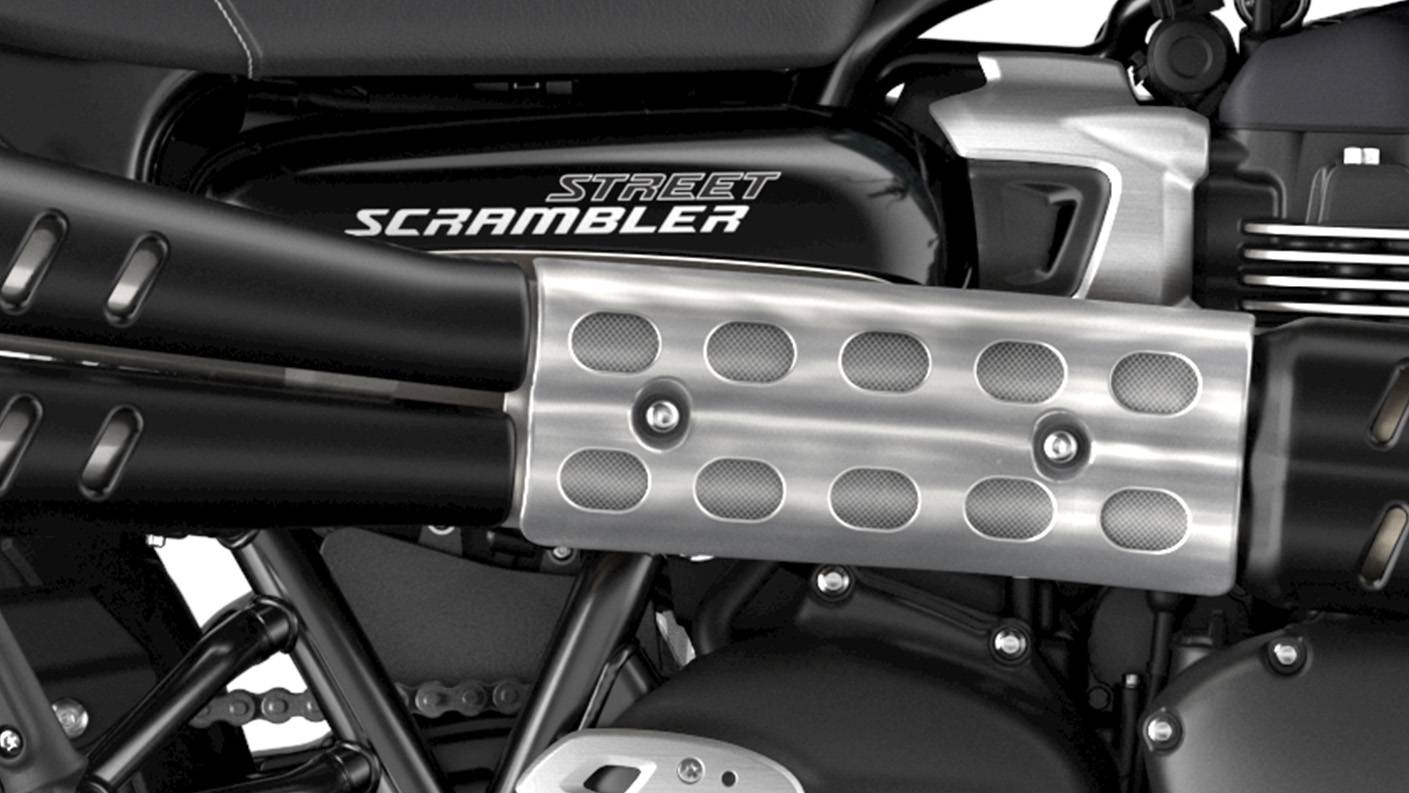

Exhaust: | Brushed 2 into 2 exhaust system with brushed high level silencers | Fuel tank capacity: | 12L |

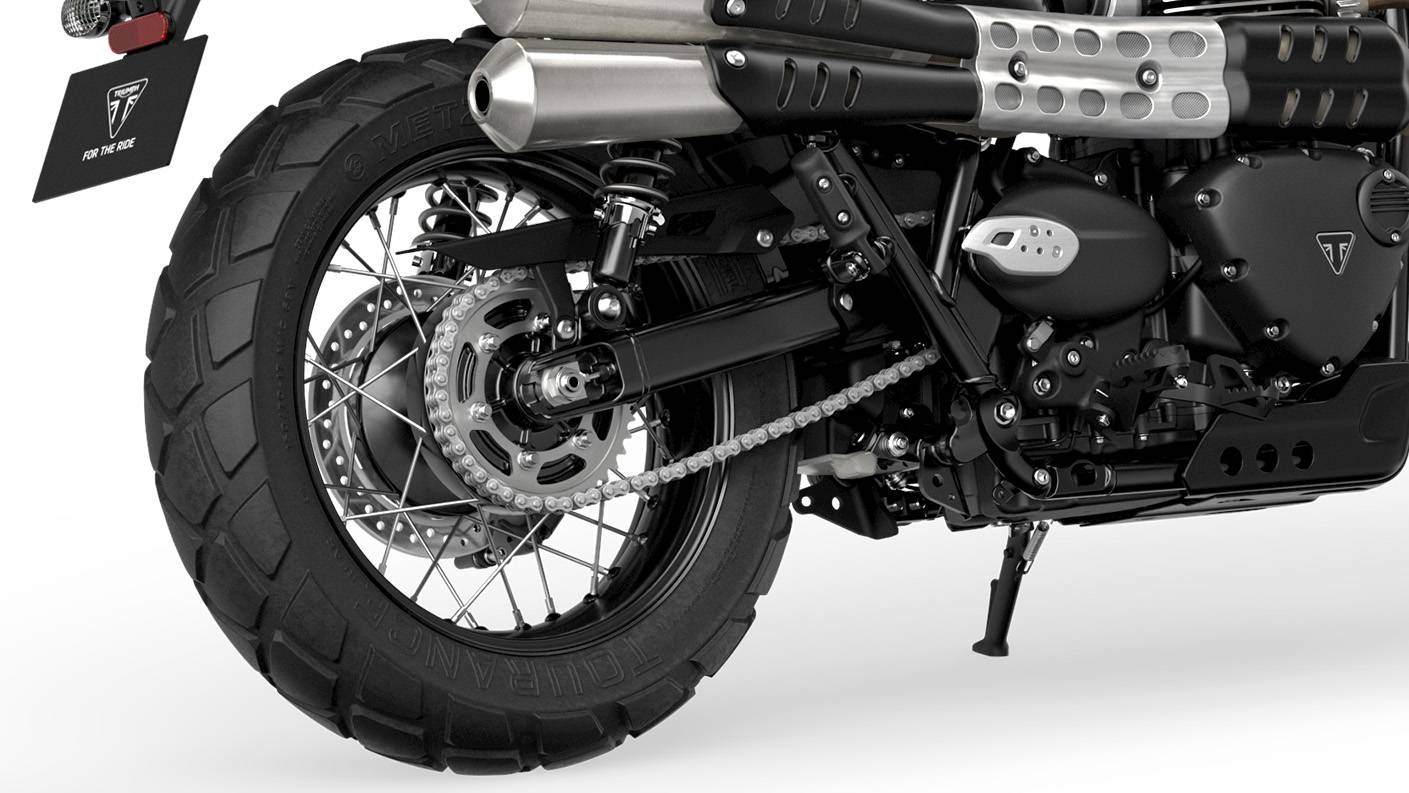

Final Drive: | O ring chain | Fuel consumption: | 4.3l / 100 km |

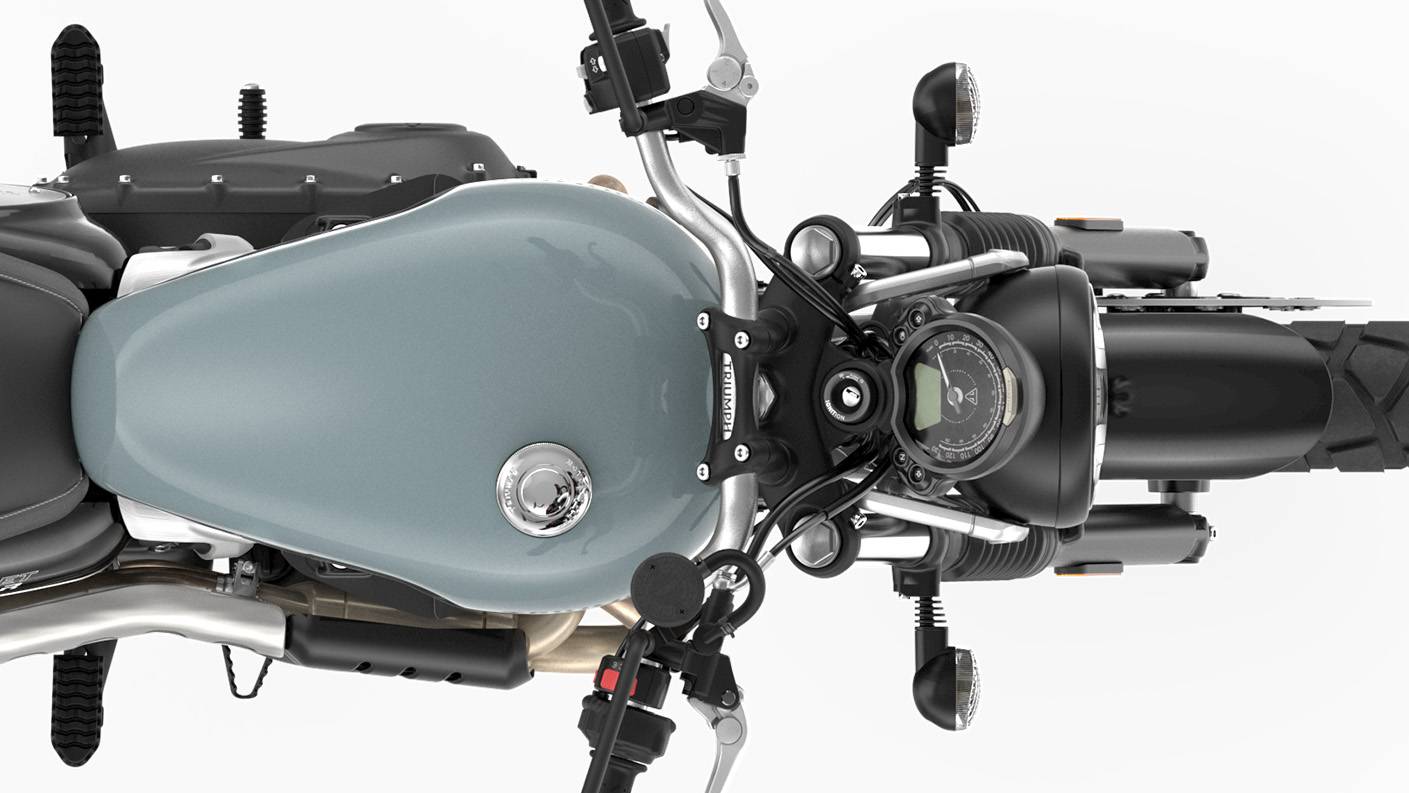

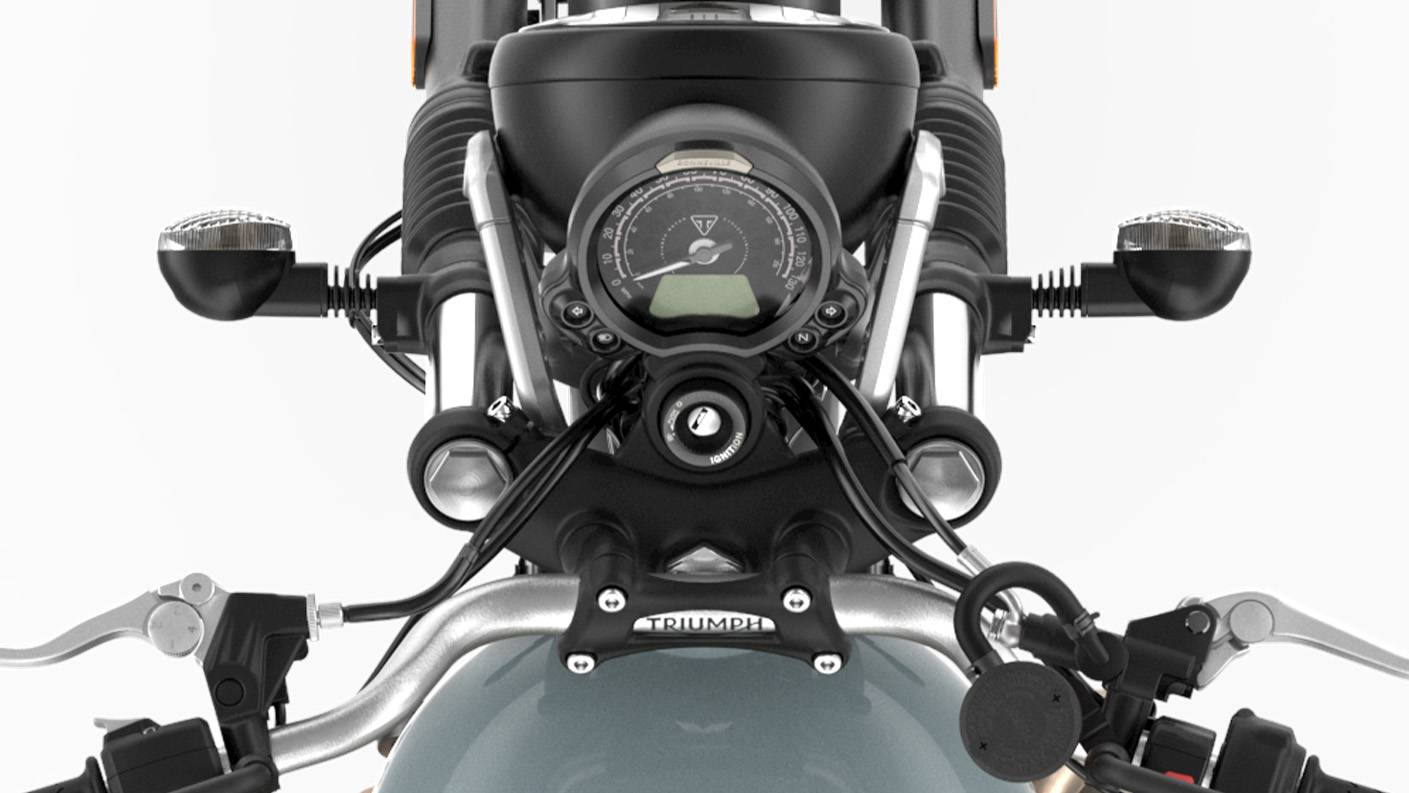

Instrument Display & Functions: | Analogue speedometer with LCD multi-functional display |
